Spesifikasi Teknis Fixed Blossom Nozzle:
| NO | Name | Parameters |
| 1 | Product Name | Fixed Blossom |
| 2 | Material | Fully Brass Blossom 3 Tiers Water Fountain Nozzle Jet |
| 3 | Thread | FNPT Fully Brass Blossom Nozzle |
| 4 | Water Flow Rate | 3 – 25m3/h |
| 5 | Pressure | 40 – 100Kpa |
| 6 | Water Inlet | 1/2″, 3/4″, 1″, 1.5″, 2″ Brass Water Fountain Nozzle |
| 7 | Water Spray High | 1.5 – 4m |
| 8 | Water Spray Diameter | 1.5 – 3.5m |
| 9 | Item Weight | 0.2 – 2Kg |
Dimensi Nozzle Fixed Blossom :
Dimension Sheet :
| Remarks | Specifications | |||
| DN50 | DN40 | DN25 | DN20 | |
| A (mm) | 8*1+4*30 | 6*1+4*30 | 6*1+4*24 | 4*1+3*24 |
| B (mm) | 110 | 110 | 95/62 | 58 |
| C (mm) | 150 | 140 | 108/63 | 65 |
Technical Data :
| Model | Connections (G) | Pressure (Kpa) |
Discharge (m3/h) | Height (m) |
Diameter (m) |
| Ssht50 | 2″ | 70-100 | 18-25 | 3.0-4.0 | 2.8-3.5 |
| Ssht40 | 1.5″ | 60-80 | 15-18 | 2.5-3.0 | 2.5-3.0 |
| Ssht25 | 1″ | 50-70 | 8-10 | 2.0-2.5 | 2.0-2.5 |
| Ssht20 | 3/4″ | 40-60 | 3-6 | 1.5-2.0 | 1.5-2.0 |

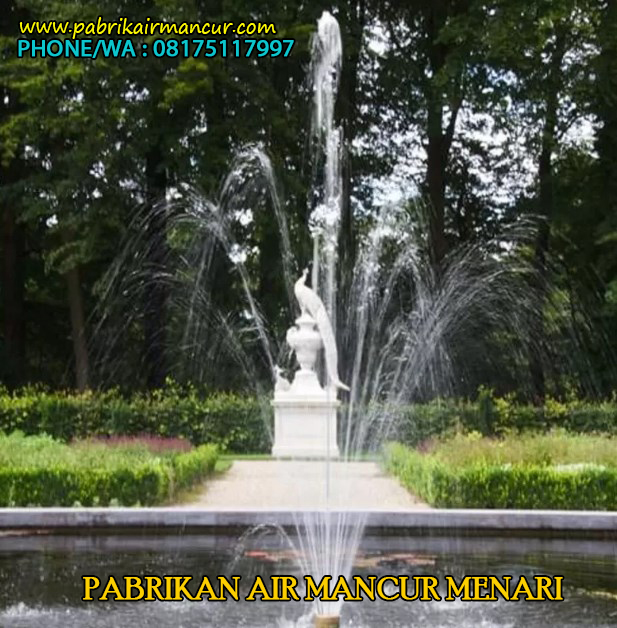

Tampilan Nozzle Fixed Blossom Saat digunakan :
Demikian Informasi Singkat yang bisa kami tuliaskan semoga ada guna dan manfaatnya untuk pembaca sekalian. jika membutuhkan informasi lebih lanjut silahkan menghubungi kami di kontak dibawah ini :
PT. Mega Mandiri Komiditi
Pergudangan JJ Permata Jabon 2 Blok C no 3, Tambak Sawah , Sidoarjo
Email : greenc1ty@yahoo.com
Hotline : 08175117997
